4-way power divider / combiner 0,5 – 6 GHz – N

The LT4-5xxP-6G series power splitters are used to split or combine high-frequency signals symmetrically. These Wilkinson dividers have been developed for use in the 500 MHz – 6000 MHz frequency range and are therefore ideally suited for common mobile phone standards such as GSM, UMTS and LTE as well as Bluetooth, DECT and Wi-Fi.

further information ...

Description

With the Wilkinson LT4-5xxP-6G series dividers, high-frequency signals are divided or combined symmetrically. These Wilkinson dividers have been developed for use in the 500 MHz – 6000 MHz frequency range and are therefore ideally suited for common mobile phone standards such as GSM, UMTS and LTE as well as Bluetooth, DECT and Wi-Fi.

The components are available as 4-way power splitters with SMA (LT4-544P-6G) and N (LT4-588P-6G) connectors.

The LT series broadband dividers have low insertion loss, very good VSWR and excellent phase and amplitude balance.

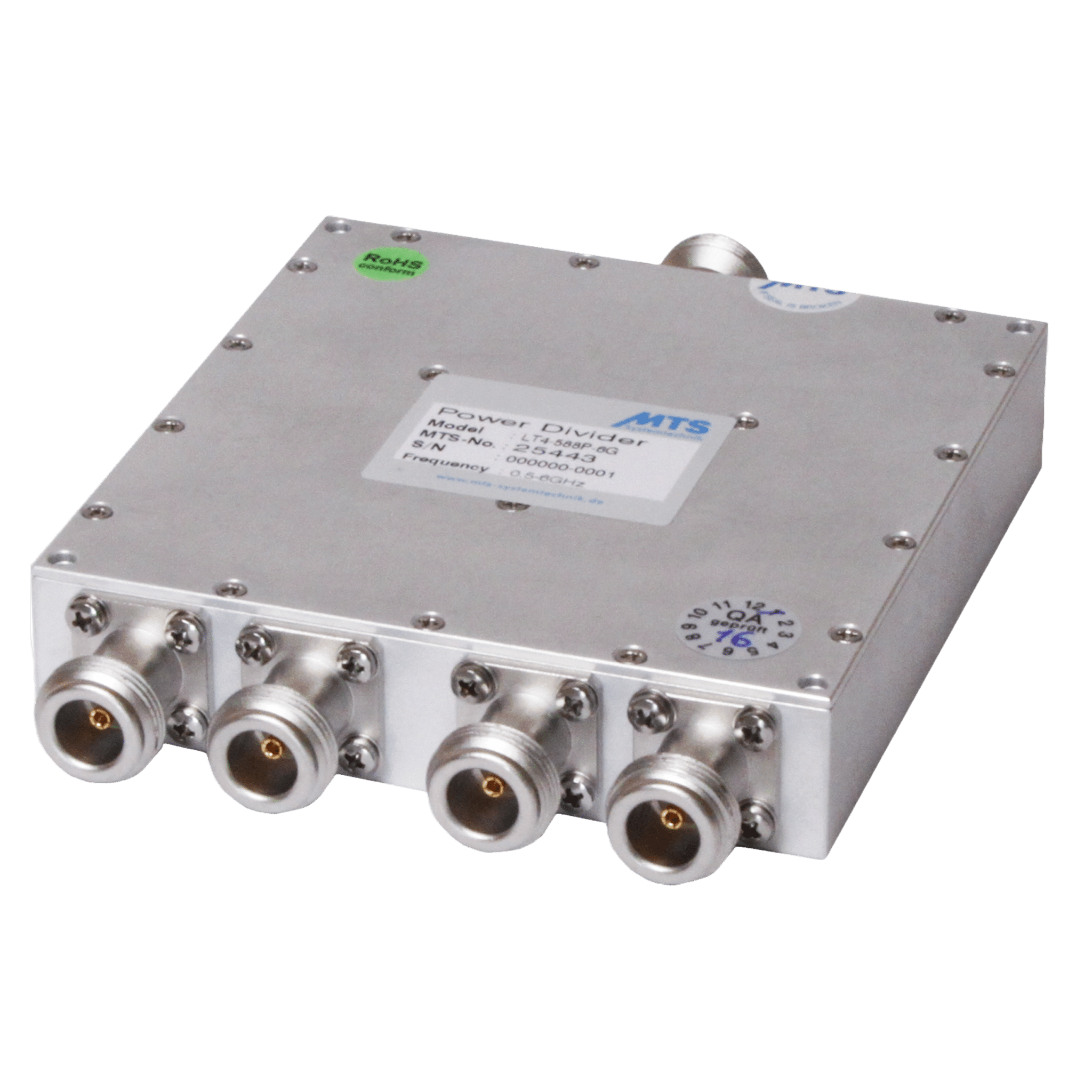

(Image may differ from the original.)

Data sheet

Item number:

25443

Frequency range:

from 500

to 6000

INPUT:

N (1 pieces): N-female

OUTPUT:

N (4 pieces): N-female

Impedanz:

50 Ω

VSWR in:

1.3 typ. @ 700 - 5850 MHz, 1.4 typ. @ 500 - 6000 MHz

VSWR out:

1.1 typ. @ 500 - 5850 MHz, 1.3 typ. @ 5850 - 6000 MHz

Insertion loss (+6 dB):

0.3 dB @ 700 MHz, 1.9 dB @ 5850 MHz

Isolation:

23 dB typ. @ 700 - 6000 MHz

Eingangsleistung (common port):

40 W max. @ VSWR ≤ 2.0 : 1

Eingangsleistung (output ports 1 - 4):

1 W max. each port

Images

Downloads

Data sheet LT4-588P-6G

S-Parameters LT4-588P-6G

Drawing LT4-588P-6G
