8-way power divider / combiner 0,5 – 8 GHz – SMA

The LT8-588P-8G is an ultra-wideband 8-way 0° high-power divider/combiner that offers up to 40 W of power as a divider. The range from 500 MHz to 8 GHz supports a variety of applications, including GSM, Bluetooth, Wi-Fi 7 and all LTE+ and 5G frequency bands.

further information ...

Description

The Wilkinson LT8-544P-8G divider is an ultra-wideband 8-way 0° high-power divider/combiner that offers up to 40 W of power as a divider.

The range from 500 MHz to 8 GHz supports a variety of applications, including GSM, Bluetooth, Wi-Fi 7 and all LTE+ and 5G frequency bands.

Its unique design ensures very low insertion loss, minimising power dissipation and transmission of signal power from input to output.

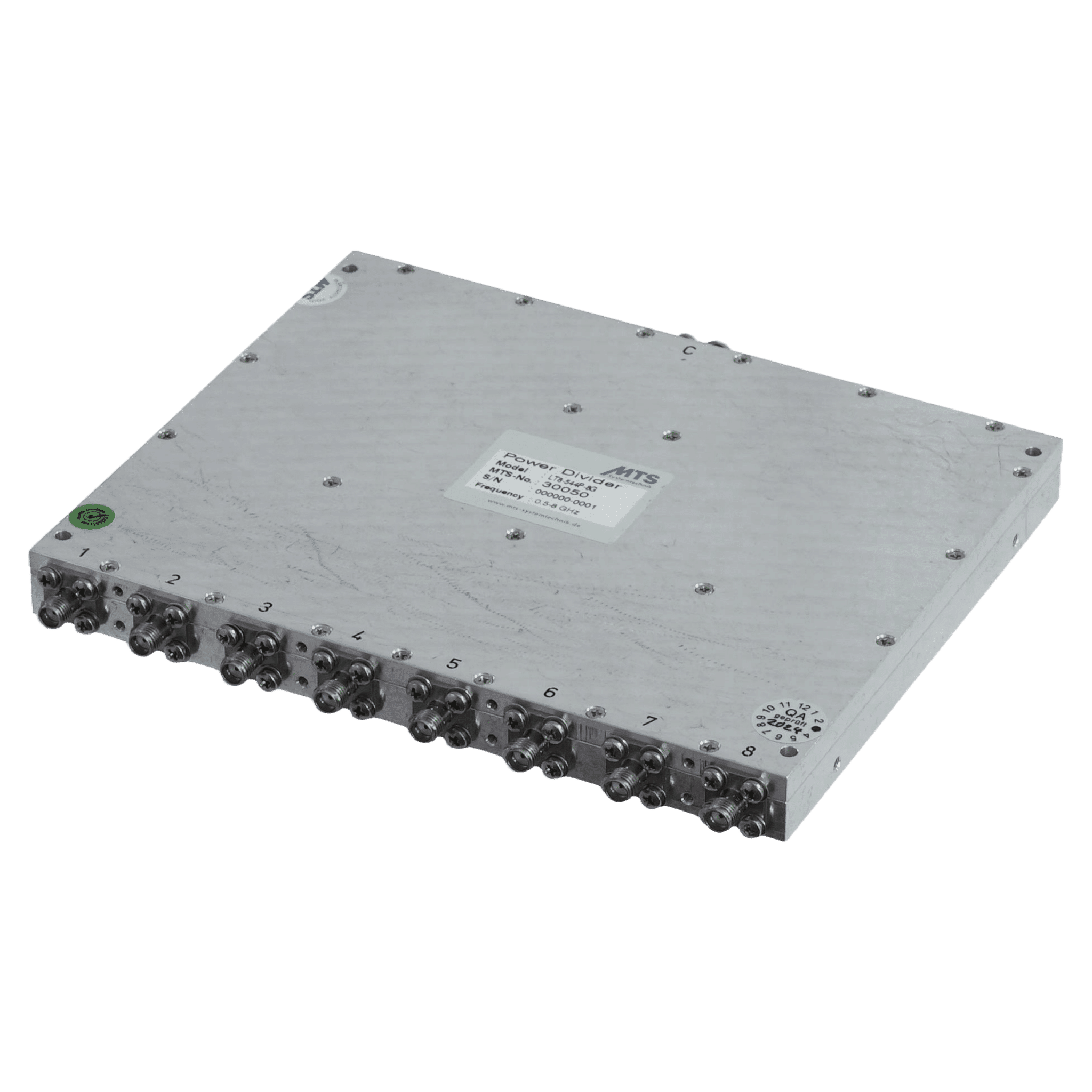

(Image may differ from the original.)

Data sheet

Item number:

30050

Categories:

Divider, RF components

Specification

Frequency range:

from 500

to 8000

INPUT:

SMA (1 pieces): SMA-female

OUTPUT:

SMA (8 pieces): SMA-female

Impedanz:

50 Ω

VSWR in:

1.2 typ. @ 700 - 8000 MHz

VSWR out:

1.1 typ. @ 500 - 7200 MHz

Insertion loss (+9 dB):

0.8 dB typ. @ 500 - 4000 MHz, 1.5 dB typ. @ 4000 - 8000 MHz

Isolation:

25 dB typ. @ 700 - 7200 MHz

Eingangsleistung (common port):

40 W max. @ VSWR ≤ 2.0 : 1

Eingangsleistung (output ports 1 - 8):

1 W max. each port

Images

Downloads

Data sheet LT8-544P-8G

S-Parameters LT8-544P-8G

Drawing LT8-544P-8G

Downloads
